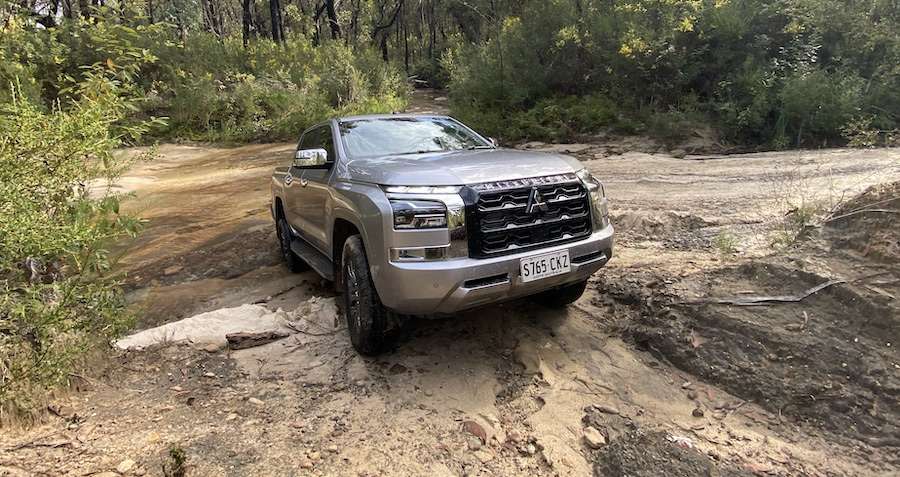

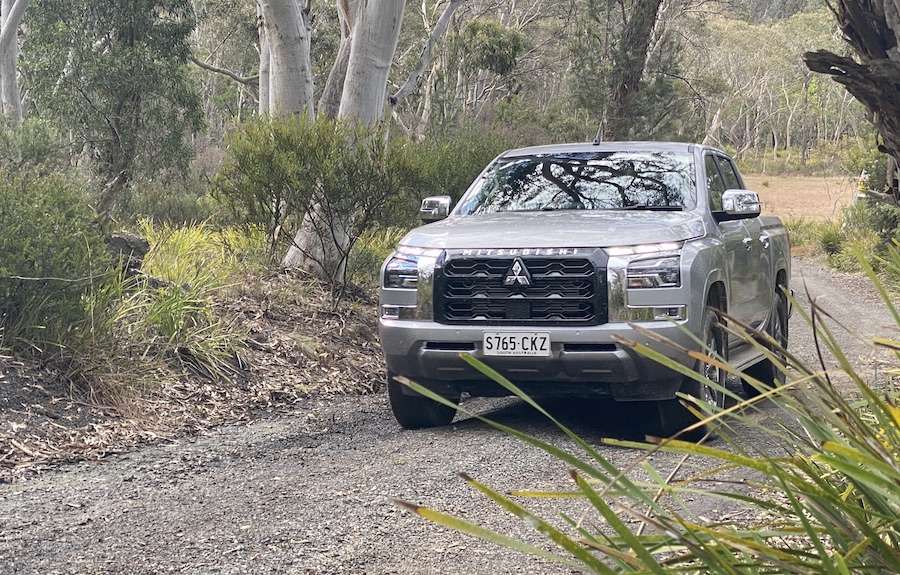

The sixth-generation Triton was launched in February 2024.

Mitsubishi Motors’ restyled Triton was released in Australia in 2015. Upgrades were made in late 2016, 2019, 2020 and 2022. The replacement model came in February 2024.


Mitsubishi Motors displayed the Mitsubishi XRT Concept at the 44th Bangkok International Motor Show in March 2023. The XRT was a concept vehicle, based on the all-new Triton pickup that was given its Australian market launch in 2024.

In July 2023, Mitsubishi released the new model range in Thailand and launched in other markets followed in late 2023 and early 2024, including in Australia.



Now in its sixth generation, the 2024 Triton has been redesigned for the first time in nine years: larger interior and exterior design; new suspension, ladder frame, new engine and upgraded transmissions.

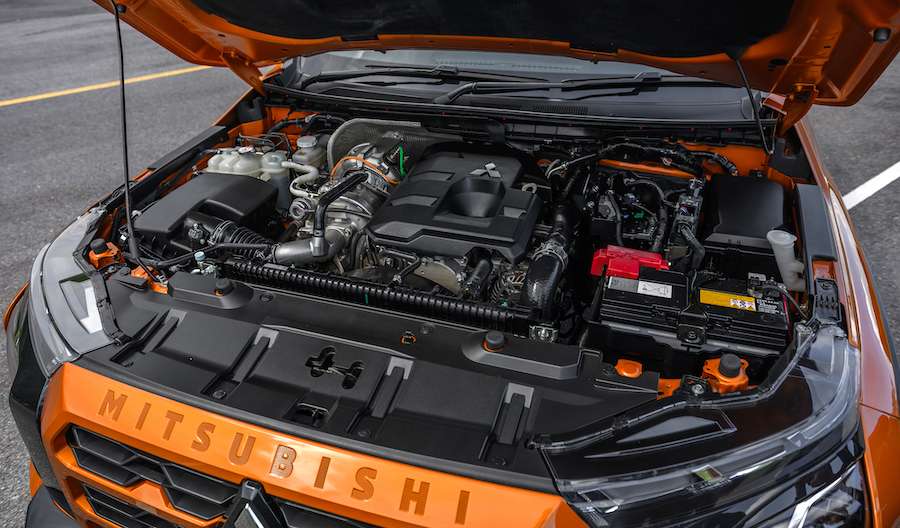

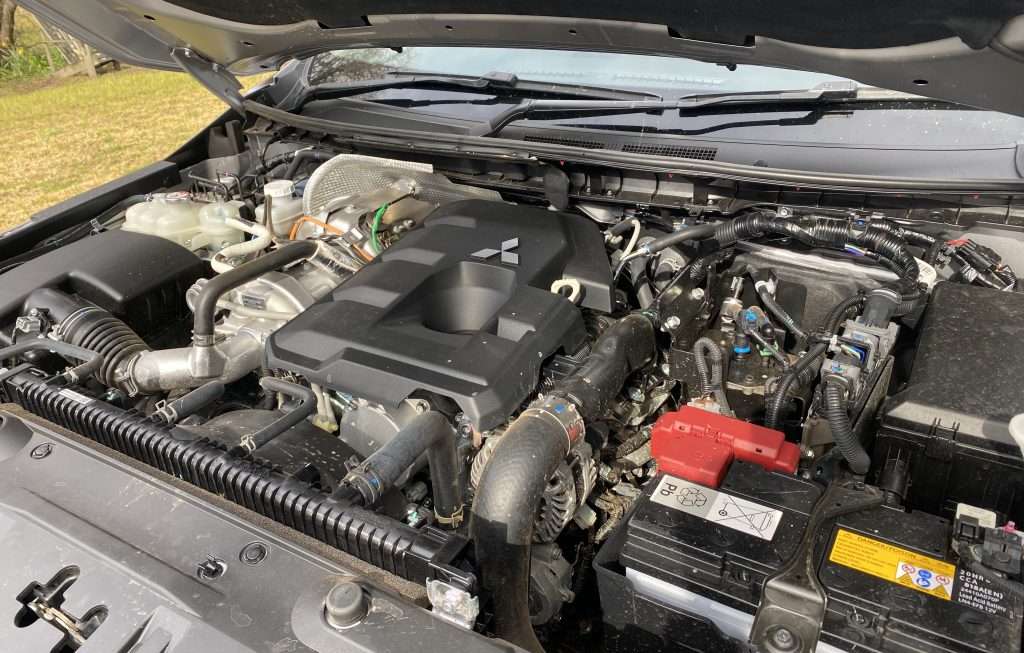

The 2024 Triton is powered by a newly developed 4N16 2.4-litre diesel engine that comes in three output specifications. The high-output, twin-turbo version has a maximum output of 150kW and maximum torque of 470Nm from 1500rpm. Other single-turbo output levels are 135kW/430Nm and 110kW/330Nm.



The ladder frame, suspension and other chassis components are all-new. The 2024 ladder frame has a 65-percent greater cross-sectional area than the previous model, achieving a bending rigidity increase of 40 percent and a torsional rigidity increase of 60 percent, according to Mitsubishi. Weight increase has been minimised by increasing the ratio of high-tensile steel.

The body is also lighter than the previous model’s, through the use of 1180MPa high-tensile steel material.

Transmission choices are a six-speed automatic transmission with Sports mode, or a six-speed manual transmission that is oil-filled for life, Mitsubishi claims. (Australia gets the automatic only.)




The Triton continues with Super Select 4WD-II or Easy Select 4WD systems. Super Select 4WD-II is equipped with a centre torque-sensing limited slip differential (LSD) that distributes driving force at a ratio of 40:60 front:rear.

Models with Super Select 4WD-II can operate in 2H (rear-wheel drive), 4H (full-time four-wheel drive), 4HLc (locked centre differential) and 4LLc (locked centre differential with low range gearing), in one of seven drive modes including on-road modes: an increase over the four off-road modes of the previous model.

Along with Normal mode that is available in all four-wheel drive modes, 2H offers Eco mode, 4H offers gravel and snow modes, 4HLc offers mud and sand modes and 4LLc provides rock mode.

AYC is newly adopted for models equipped with the Super Select 4WD-II system. It improves cornering performance by applying light braking to the inside front wheel when cornering. Also included is active LSD that applies braking to a spinning wheel and distributing the driving torque to wheels gripping the road surface.

The 4WD modes with Easy Select 4WD are 2H (rear-wheel drive), 4H (locked centre differential), and 4L (low-range driving).



Active stability and traction control (ASTC) that improves stability on winding roads is standard equipped on all models, along with hill descent control (HDC) and hill start assist (HSA) that prevents roll-back on hill starts.

The new front suspension retains a double wishbone layout, but the upper suspension mounting arm has been moved higher to increase the stroke by 20mm. The rear suspension has lighter-weight leaf springs and larger shock absorbers.

Steering on the high-output engine models is electric.

Daytime running lights are three L-shaped LED, mounted above three-light headlights. T-shaped tail lights are fitted.

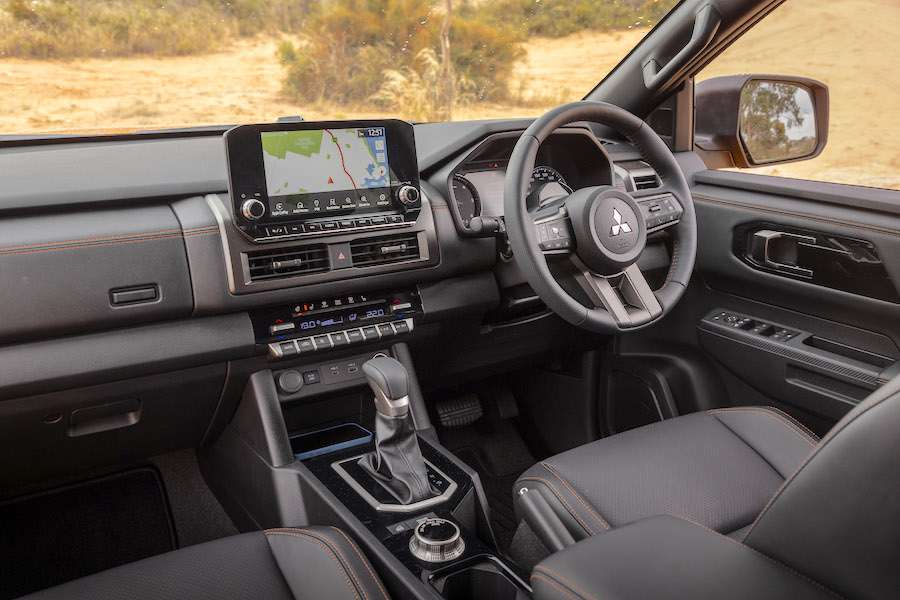

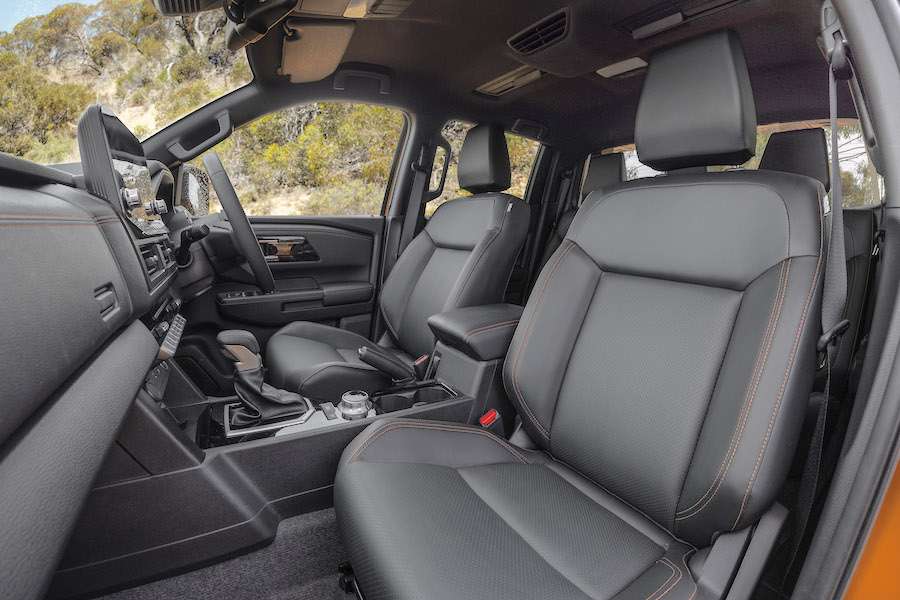

The dashboard monitor, meters and switches have an optimum level of sensitivity, allowing them to be operated while wearing gloves, Mitsubishi claims.



The centre console can accommodate two large cups and the console box can hold four 600ml plastic bottles. The console box in the auto models can hold tablets and files, in addition to being a cup holder. The instrument panel and centre console have USB A and C sockets and a wireless charger.

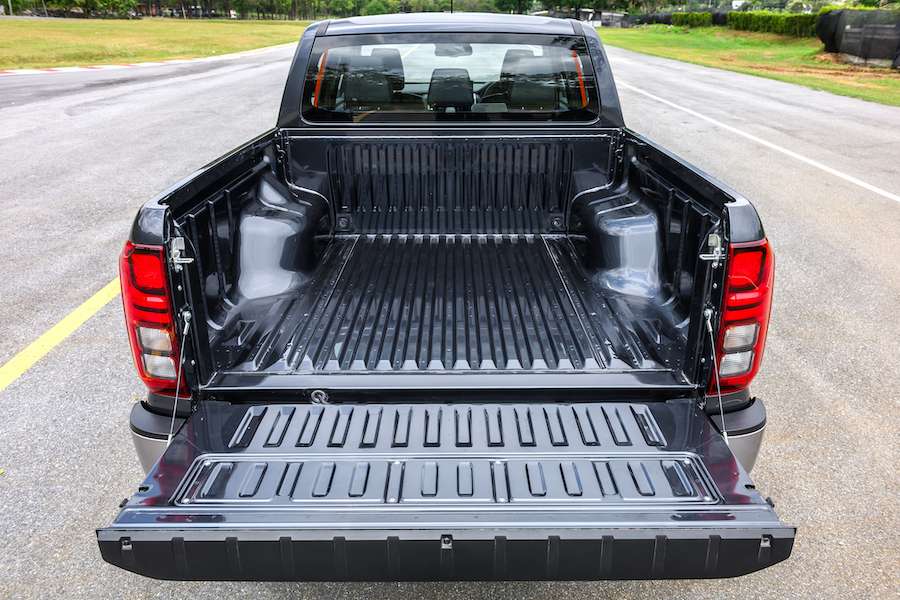

The cargo bed height has been lowered by 45mm to 820mm and the upper surface of the bumper corners have been enlarged and reinforced with a frame to be used as a foot step.

The front seat hip point has been moved up 40mm and the A-pillar is more vertical, to widen the door openings and the side steps are wider.

Adaptive cruise control (ACC) is adopted and forward collision mitigation system (FCM), blind spot warning (BSW), lane change assist (LCA) and rear cross traffic alert (RCTA) are retained.

For driver safety, a request for help can be made to a call centre with the touch of a single button in the event of an accident or breakdown, while also being capable of automatically reporting the deployment of an airbag.

By linking with a smartphone, Mitsubishi Connect enables a car finder function that displays the location of a parked car. Users can also, drive history, and other aspects of the vehicle’s state.

Remote operation can check the remaining fuel volume and oil state, switch on the air conditioning and also operate the headlights and horn.

Accessories include sport bar, fender arch mouldings and cargo bed liner.



Specifications and pricing

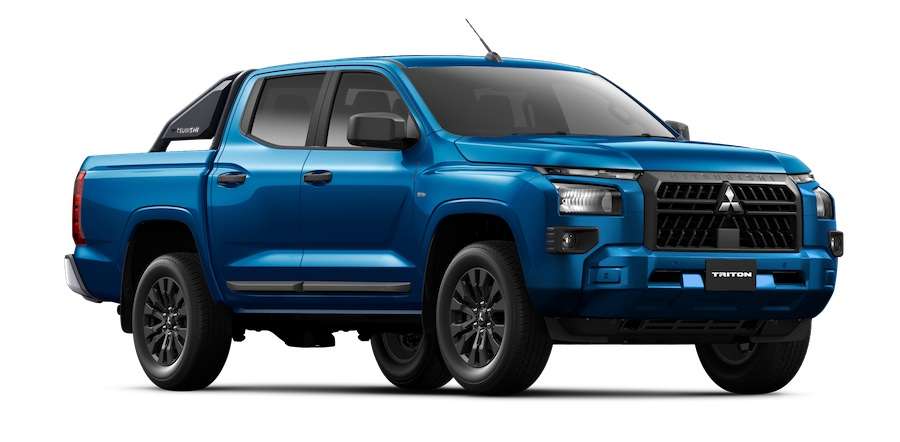

The Australian-market lineup and pricing was released in November 2023.

The Triton GLX comes with: Engine Auto Stop & Go system; heavy duty rear suspension; Easy Select 4WD, with 2H, 4H and 4L; 17-inch wheels; cloth seat trim; driver seat electric lumbar support; vinyl floor; multiple airbags; Forward Collision Mitigation (FCM) with pedestrian detection, cyclist detection and junction assist; Adaptive Cruise Control (ACC); Blind Spot Warning (BSW)/Lane Change Assist (LCA); Emergency Lane Keeping (ELK); Emergency Lane Assist (ELA); Lane Departure Prevention (LDP); parking sensors – front and rear; rear view camera; Front Cross Traffic Alert; Rear Cross Traffic Alert ; Multi Collision Brake;Traffic Sign Recognition (TSR); Driver Attention Alert (DAA);Driver Monitor System (DMS); Intelligent Speed Limiter (ISL); Automatic High Beam system (AHB); Active Stability Control (ASC); Anti-Lock Braking System (ABS); Traction Control; Electronic Brake Distribution (EBD); Brake Assist system; Trailer Stability Assist (TSA); Hill Start Assist (HSA);Emergency Stop Signal (ESS); Automatic Air Conditioner in Club Cab and Double Cab; keyless entry; Tyre Pressure Monitoring System (TPMS); Electric Power Steering (EPS);seven-inch LCD MID Meter Cluster; Integrated Navigation System; front and rear A and C ports; nine-inch audio display; Apple CarPlay; Android Auto; four-speaker audio (Club Cab and Double Cab) and Bluetooth connectivity with voice and steering wheel controls.

Pricing for the GLX Double Cab starts at $50,940.

Triton GLX+ adds: Rear Differential Lock; Side Steps; Front Fog Lamp; LED high-mounted stop lamp; privacy glass (rear windows); Rear Automatic Emergency Braking; Multi Around View Monitor and Digital Audio Broadcasting (DAB).

Pricing for the GLX+ Club Cab starts art $50,3430 and the Double Cab, $53,290.

Triton GLS adds: Super Select 4WD II with 2H, 4H, 4HLc and 4LLc; comfort rear suspension; 18-inch alloy wheels; tray bed liner; heated, electrically-adjusted door mirrors; LED lighting (headlamps, side turn lamps, front fog lamps, front and rear combi lamps); dual-zone auto air conditioning; Terrain Control; Hill Descent Control; electrochromic inside rear view mirror; Keyless Operating System (KOS); One Touch Engine Start Switch (OSS) and Smartphone Wireless Charger.

Pricing for the GLS Double Cab starts at $59,090 and a GLS Leather Option costs an additional $1500.

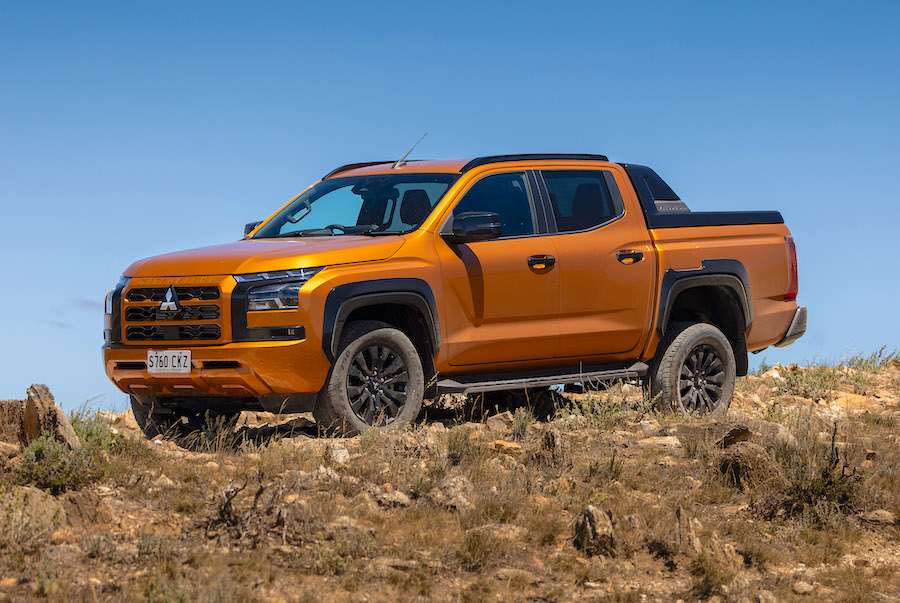

Triton GSR has black 18-inch wheels; body colour front grille; wheel arch moulding; Styling Bar; roof rails; leather seats with orange stitching; GSR-specific floor mats with ‘Triton’ lettering; owered driver’s seat adjustment.

GSR pricing starts at $63,840.

TJM engineers in Australia and Thailand have already developed 46 different Aeroklas, TJM and XGS custom designed products for the new Triton range. The products include vehicle protection, suspension upgrades, recovery gear, snorkel, camping gear, lighting and other accessories.

We requested a press test vehicle and were told to be patient. OTA knows the press test vehicles were available in early April, 2024, but weren’t released, because Mitsubishi had too much stock of the outgoing models in dealerships around Australia.

We have other commitments, including trips to Qld and WA in June, July, August, so we don’t expect to have a Triton test report until September.

Fortunately, other brands were much more accommodating with test vehicles for us. Check out the other entries in this Buyers Guide section.



Previous models


The post-2015 Triton claimed higher levels of safety, improved quietness and ride comfort and had much-needed tightened steering lock with a turning radius of just 5.9 metres, improving manoeuvrability.

The new model was powered by an all-aluminium 2.4-litre MIVEC turbo-diesel engine with variable geometry turbo and outputs of 133kW and 430Nm. Although the torque level didn’t look like a massive improvement there was much more grunt available at low revs.

The previous 2010-2014 Triton’s 2.5-litre diesel engine was horrible, lacking torque and response. It replaced the 3.2-litre diesel engine that was shared with the Pajero and no-one could work out why Mitsubishi did it. In all our testing the larger engine had much better performance and fuel economy.

The unloved 2.5-litre was replaced by a slightly smaller 2.4-litre four for 2015. It was an up to date design, with a variable geometry turbocharger and more refined fuel system. Fuel economy was a claimed 20-percent better.

The engine mated to a new six-speed manual or five-speed auto (six-speed from 2019) and there was no engine torque limitation on the auto, as there was with the previous four-speed transmission.

A new transfer case low-range ratio of 2.56:1 was adopted.

The new engine was some 30kg lighter, contributing to less front axle tare weight – important when it comes to fitting a bar and winch.

Transmissions were a new six-speed manual transmission or five-speed automatic. A new transfer case featured deeper-reduction low-range, with a ratio of 2.56:1.

The optional rear diff lock was deleted from all spec’ levels except the top-shelf Exceed. We asked Mitsubishi why and they told us that very few people ordered it. Maybe they didn’t promote its advantages very well.

Like its predecessor the post-2015 Triton was produced in Thailand.

Mitsubishi invited OTA to a preview of the 2015 Triton in March, but the only vehicle available was a top-shelf crew-cab Exceed model. After that we also checked out a GLS crew cab model.

Other models in the range included short-cab, extra-cab and crew-cab models. The mid-cab version had rear ‘suicide’ doors for ease of access to the small rear seats.

The former chassis was retained, but was strengthened at key points. The spring hangers were new, spaced 50mm further forward at the front and 70mm at the rear, to accommodate 120mm-longer leaf springs.

The 2015 Triton had an evolutionary, rather than revolutionary, body design. Overall shape was preserved, but the cab was moved slightly forward on the chassis and the familiar sloped C-pillar on crew-cabs remained, but was less curved than before. Ridged highlights graced front and rear mudguards, giving the Triton a sharper appearance.


What you got

The 2015 Triton GLX 4×4 Single Cab and Double Cab came with: 16×6 steel wheels with 205R16C tyres (Single Cab) or 16×7 steel wheels with 245/70R16 tyres and overfenders; air-conditioning; tilt and telescopic steering column; cruise control with steering wheel controls; hands free Bluetooth with voice command and steering wheel controls; audio system with AM/FM radio/CD player; USB port; multi Information monitor (average fuel consumption, driving distance); adjustable speed limiter; seven airbags (driver and passenger, side and curtain, driver’s knee); ABS/EBD/ASC/brake override system; EBA; Hill Start Assist system; Trailer Stability Assist system; Emergency Stop Signal function; alarm; immobiliser; Easy Select 4WD system with  electronic control transfer shift dial.

Triton GLX 4×4 Club Cab had the above equipment, plus side steps and a four-door body with clamshell-style doors.

Triton GLS 4×4 Double Cab had GLX equipment, but added Super Select II 4WD; 17×7.5 aluminium wheels with 245/65R17 111S tyres; High Intensity Discharge (HID) headlamps; LED Daytime Running Lamps (DRL); front fog lamps; side steps; rear step bumper; sports bar; rear view camera; chrome automatic electric folding door mirrors with side turn lamp; three-spoke leather steering wheel; leather transmission shift knob; sports trim interior fabric; outside temperature indicator; dual zone  climate-control air-conditioning; display audio with 6.1-inch colour touch screen, AM/FM radio/CD player; DAB (digital audio broadcast) radio and six-speaker audio, including two tweeters.

Triton Exceed picked up transmission paddle shift; rear diff lock; smart key; one touch start; dusk sensing headlamps; rain sensing auto intermittent wipers; leather seats; driver’s power seat and Mitsubishi Multi Communication System featuring seven-inch touch screen display with DAB, 3D navigation mapping and SD Card input.

Pricing at the 2015 launch was $32,490 for a GLX Single Cab; $35,290 for a Club Cab; $39,490 for a Double Cab Pick Up; $43,490 for a GLS Double Cab Pick Up and $47,490 for a Double Cab Exceed.

Mitsubishi introduced a GLX Double Cab/chassis auto or manual model in September 2015, priced from $36,240.

The Triton range had Mitsubishi’s five-year/100,000km New Car Warranty.

Service intervals were 15,000km or 12 months and the capped price service schedule was: 15,000km (12 months) $350 RRP; 30,000km (24 months)  $580 RRP; 45,000km (36 months) $580 RRP and 60,000km (48 months) $580 RRP.


2017 upgrades

In December 2016, upgrades were made across the Triton range.

Mitsubishi’s smartphone integrated audio system – Smartphone Display Audio or SDA – with seven-inch colour touch screen was added to the top-spec’ Triton GLS and Exceed, along with a four-spoke leather-wrapped steering wheel.

Externally, GLS and Exceed were given dark chrome grilles and headlight garnish, and platform-style side steps.

In addition, Exceed picked up an electro-chromatic rear view mirror and heated front seats.

At the workhorse end of the range, a reversing camera and a rear step bumper became standard on the Triton GLX double cab pick-up. All GLX and GLX+ 4×4 variants picked up 16-inch All-Terrain tyres.

Triton GLX gained Mitsubishi’s premium audio AM/FM CD system with 6.1-inch colour touch screen – previously fitted to Triton GLS – and a new design key fob.

A speed-sensing auto door lock was made standard across the range.


2019 upgrades

In late 2018 the Triton was facelifted for 2019 release Down Under and upgrades, including a six-speed auto box option, were incorporated.  The Exceed model became the GLS Premium.

A new Terrain Response Off-Road Mode, with Gravel, Mud/Snow, Sand and Rock settings was added to GLS and Exceed models, integrating control of engine power, auto transmission and electronic stability control settings.  The GLS also picked up paddle shift auto box controls that were previously available only on the Exceed.

Driving aid technologies added included Forward Collision Mitigation (FCM/AEB), Blind Spot Warning and Ultrasonic Mis-acceleration Mitigation System. UMMS prevents accidental hard acceleration in forward and reverse during slow manoeuvres.

Hill descent control was added to models equipped with Super Select II.

RRP pricing at launch ranged from $32,990 for a manual-transmission 4×4 short cab/chassis to $51,990 for a GLS Premium Double Cab automatic-transmission


2020 changes


Previously reserved for the GLS Premium, a rear diff lock was made available on GLX+, GLS and GLS Premium models.

The GLX+ model used Easy-Select 4WD, part-time 4WD, offering 2H, 4H and 4L transfer case settings, whereas GLS and GLS Premium models were equipped with Super-Select 4WD-II that offered 2H (rear-wheel drive), 4H (full-time 4WD), 4HLc (lock up) and 4LLc (lock up in low range) modes.

For 2020 the GLX+ also gained an air circulator, to improve cabin comfort.

The GLS gained a smart key and one-touch start.

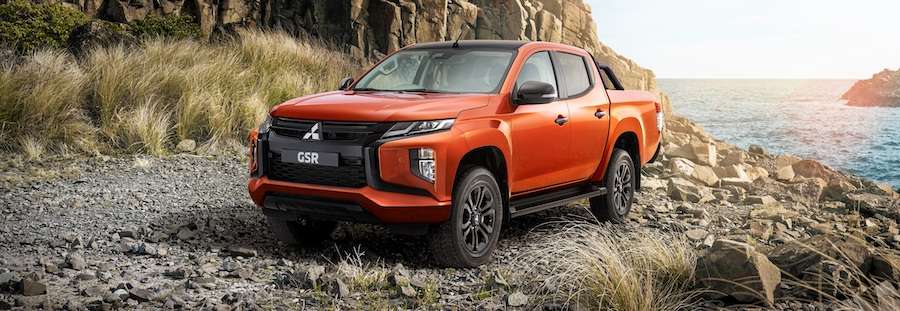

In February 2020, Mitsubishi expanded the Triton range with the addition of two new variants: GLX-R and GSR.



The GSR featured 18-inch black aluminium wheels, black grille, headlamp garnish, skid plate, door mirrors, door handles and sidesteps.

It also picked up Multi around Monitor with steering wheel camera switch, leather-trimmed seats, steering wheel, park brake lever and shift knob, plus power driver’s seat adjustment and heated front seats.

An optional tan interior featured highlights on leather seats, console box and knee pads.

The GSR had three optional accessories packs that included tonneau covers – roll-top, hard and soft – black sports bar and under-rail tub liners.

The GLX-R scored 18-inch aluminium wheels, large fog lamps, chrome door mirrors, front bumper garnish, door handles and grille.


2022 models



The 4×4 dual-cab manual was no longer available on the mid-range GLX-R and the GLX 4×4 dual-cab ute was available with a six-speed automatic transmission or manual transmission.

The GLX ADAS trim level, which added active security and driver aid technology to the standard GLX grade, was removed from the lineup, but the GLX dual-cab ute and cab-chassis incorporated the former GLX ADAS’s additional functions.

The GLX ADAS club-cab chassis auto was rebranded GLX, but the manual version and single-cab GLX models lacked automatic headlights and autonomous emergency braking.

Surround-view cameras were no longer included on the GSR and were available only on GLS vehicles with the Deluxe option.

Price increases ranged from $250 to $1200.

Sometime in 2022 or in early 2023, the Nissan Navara/Renault Alaska/Mitsubishi Triton shared model will break cover.

Some markets will get the petrol hybrid powertrain from the Outlander Hybrid softroader, but it’s not clear if Australia will be one of them.

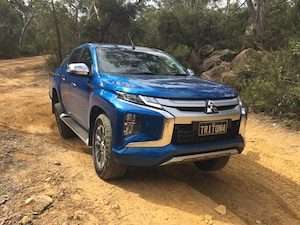

On and off road in the 2019 GLS


Our test vehicle was a GLS auto Double Cab, fitted with the newly available six-speed transmission, hill descent control and Terrain Response features. The new auto shifted superbly and we appreciated the paddle shifts when controlling downhill speed.

Unfortunately, Mitsubishi’s engineers weren’t directed to the Triton’s suspension deficiencies and the latest model rode and handled well on smooth bitumen, but hated lumpy blacktop and corrugated dirt roads. The handling criticisms we made below and in the following video we did with 2015 models still apply to the 2019 models.

Mitsubishi employed bias-mounted rear-axle shock absorbers in the post-2015 Triton and they’re steeply angled in an effort to control axle wind-up under heavy braking and acceleration, as well as damping vertical axle movement caused by bumps and corrugations. This compromise design is used by several ute makers and it doesn’t work. What’s needed are chassis-to-diff-centre torque rods to control axle wind-up and vertical shocks to control bump and rebound action.

Making the situation worse was a pair of front struts with equally poor damping ability.

We tested the suspension behaviour with varying loads, between solo-driven-unladen, with 200kg and 360kg payloads and ride quality was poor in all modes.

The ride quality was a great shame, because the Triton GLS and Exceed models had Super Select II drivelines, with selectable full-time 4WD that was a boon on loose and slippery surfaces.

Off road, the new Terrain Response system worked well in ‘rock’ mode on our fire-trail test track, moderating accelerator response and traction control, to keep the vehicle moving, even with one or two wheels off the deck.

Engine braking from the auto box was surprisingly effective and was further enhanced by the fitment of hill descent control.

We liked the fit and finish and the ergonomics of the 2019 Triton and we loved its smooth-road behaviour, but we couldn’t live with that suspension. Our first port of call would be an after-market suspension specialist.


On and off road in two 2015 models


The interior space was slightly enhanced and rear seat legroom in crew-cabs was still class-leading, Mitsubishi claimed. Fit and finish was excellent and quite car-like.

By far the biggest improvement was to the front seats. We’ve complained for years about the lack of padding and thigh support in Triton seats and Mitsubishi finally listened. We drove and passengered on- and off-road  and felt quite comfortable.

The steering column tilted and telescoped, so getting foot and arm ergonomics worked out was easy.

Matched to an Aisin five-speed auto in the test vehicles the new engine was a delight to operate.

Accelerator response was instant and lag-free, while great shift quality from the box ensured that the donk kept operating in its optimum band. The engine felt completely unfussed at all times.

We averaged 8-9L/100km with 300kg payload, on highway, but consumption climbed to 10-12L/100km in the hills and when off-road.

GLS and Exceed models had the Pajero’s Super-Select, full-time 4WD, unlike most of the competition that has part-time 4WD.

Mitsubishi upgraded the front and rear Triton suspensions for 2015, but much more work was needed. We liked the stiffer front end feel and the steering was more precise than before. Longer leaves at the back end improved ride quality on smooth roads, but the dampers were very underdone on corrugated surfaces.

The 2015 Triton’s off-road behaviour was significantly better than its predecessor’s, thanks to improved torque, deeper-reduction low-range gearing and more compliant rear suspension.

The new 2WD-4WD-4Low dial-control worked easily, as did the rear-axle diff-lock switch on the Exceed model.

Engine braking in these automatic-transmission vehicles was surprisingly good.




Earlier Previous Models

mitsubishi triton The Mitsubishi Triton MK model was introduced in 1996 and was then the most comprehensive 4WD ute range in the market, including the only V6-powered 4WD ute. The new Triton body design meant that cab/chassis and Club Cab variants had reasonable accommodation, but the Double Cab had a cramped back seat, which was really suitable only for kids.

Mitsubishi had the dubious distinction of boasting the most expensive medium-sized Japanese ute in its range, but at $46,470, the Double Cab V6 with its prominent aluminium wheels and over-fenders was a lot of ute.  The workhorse variants were competitively priced in the $32,400 to $37,200 bracket. Having a three-litre V6 gave the Triton an edge over all its medium-sized 4×4 ute competitors, who relied on four-cylinder petrol engines.

With 109kW and 234Nm of torque, the Triton’s bent six outclassed the opposition’s 75-92kW and 185-205Nm. Even the new petrol four was no slouch, with 97kW on tap.

However, Mitsubishi made a strange diesel engine selection for the MK Triton, replacing the old 2.5-litre turbo-diesel with a naturally aspirated version of the Pajero’s turbocharged and intercooled 2.8. The Triton’s 2.8-litre wasn’t much of an improvement over the aged 2.5, producing 71kW and 198Nm – only nine kilowatts more than the turbocharged 2.5 and with almost the same torque. By way of contrast the turbo-intercooled version in the Pajero was good for 92kW and 292Nm.

Mitsubishi’s involvement in off-road racing must have rubbed off on production machines, because the Triton range was the best handling of the light 4WD commercial pack.  Although no match for coil-sprung wagons, including Mitsubishi’s own Pajero, the Triton could be punted on fast dirt with confidence, suffering less from roll-induced oversteer than other 4WD utes.

Off-road the Triton wouldn’t go where an all-leaf-sprung HiLux would, but then neither would any of the Japanese utes with wishbone front ends. In 1998 Mitsubishi gave the Triton range minor tweaks, with intake noise reduction in the diesel models and some interior trim improvements.

mitsubishi triton In August 2000 Mitsubishi added two new manual diesel variants – a GLX Club Cab and a GLS Double Cab – and made the INVECS II intelligent-logic automatic transmission an option on the V6 GLS Double Cab model.

In September 2001 all Tritons received new front bumpers, new headlamps and side turn lamps with white lenses, new radiator grilles, new rear combination lamps and new interior trim materials. GLX and GLS Double Cab models had an AM/FM radio/single-CD audio unit as standard. Top-of-the-line GLS models picked up unique headlamps, 16-inch aluminium wheels (replacing 15-inchers), twin-pot front brake callipers, unique front sports seats and optional dual SRS airbags.

Remote keyless entry also became available on the top-of-the-range GLS Double Cab petrol and diesel models.

In mid-2003 the Triton finally scored the Pajero’s 2.8-litre intercooled turbo-diesel, replacing the naturally aspirated unit. The addition of turbocharger and intercooler had a marked effect on performance of the diesel Triton.

The 0-80km/h acceleration time came up nearly 30 per cent quicker (in 9.7 seconds, down from 13.8 seconds). Overtaking in fourth gear from 40-60km/h was reduced from 7.8 to 5.7 seconds, and 80-100km/h was reduced from 10.1 to 5.8 seconds. The performance improvements came without any fuel economy penalty.

Transmission for the turbo diesel Triton was a five-speed manual with Mitsubishi’s Easy Select part-time 4WD system. Also in 2003, the Triton received some revisions to improve occupant comfort. At the same time all engines met Euro II emission standards.

All models picked up an AM/FM radio/single-CD head unit that was CD-stacker compatible. The units had improved LCD readability and revised features – a ‘pause’ button was added and the clock was deleted.

Air conditioning became a standard fitment on GLS Double Cab models, along with chrome interior door handles and revised luxury knit seat trim. Chrome front grille, exterior door and tailgate handles completed the exterior upgrade. Driver and passenger SRS airbags and leather-wrapped steering wheel were optional on GLS (manual variants also included leather-wrapped transfer and gearshift levers as part of this pack). Airbags continued to be optional on all other V6 models.

The last Triton MK upgrade was in March 2005, with the introduction of a crew cab model that slotted between the $44,490 GLS turbo-diesel Double Cab ute and the $37,490 GLX version. The new GLX-R model retailed for $38,990 in both petrol V6 and turbo-diesel configurations.

Pre-2003 Tritons are a fairly lacklustre lot, with the exception of the three-litre petrol V6 models. Post-2003 Tritons with the 2.8-litre turbo-diesel engine are preferred over the three-litre petrol six that had a narrow operating band between peak power – 133kW at 5250rpm – and maximum torque – 255Nm at 4500rpm – and worked best in front of the four-speed automatic. The gruntier diesel came only with the five-speed manual transmission.

Don’t even consider buying a V6 petrol Triton that’s been fitted with an LPG kit. Of the major suppliers in the 4WD market, only Mitsubishi used to be strongly against gas fuel for its V6 engines, until the LPG-compatible 3.5-litre was introduced to the Pajero range. Mitsubishi changed the late model 3.0-litre V6’s piston rings, valves and valve seat material in an effort to meet the demands of LPG combustion heat, but the engine still suffered from valve seat recession.

The Triton has been built in Thailand since the MK introduction in 1996 and build quality has been generally very good. The Triton doesn’t suffer from any specific failures, but as always, regular servicing is critical. Make sure you get a Triton that’s been well looked after. Petrol engines suffer from clogged oilways if not serviced as per the manufacturer’s specifications and the pre-chamber diesel loads its oil with combustion soot very quickly. Diesels need to have been oil-drained every 5000 kilometres.

mitsubishi triton Mitsubishi Motors launched the restyled Triton in 2006. Major mechanical changes were subsequently made in 2010 and some safety and interior upgrades in late 2012 and in 2014.

A few years back, all Japanese utes looked more or less the same, but in the race to attract recreational-ute buyers in larger numbers the stylists were given their heads.

Opinions polarised around the styling cues on the Double Cab Triton vs those on the HiLux.

The front of the new Triton was a dead copy of the Ralliart competition vehicles that then dominated the Dakar event.

The Double Cab started off that way, but the rear wall tucked under and forward in a radical departure from the ute design mainstream. In addition, the Double Cab ute tray had relatively low sides and the top edges were cambered, not flat like those on every other ute tray. When surmounted with a tiny canopy the Double Cab looked…er, different.

The 2006 Triton bodywork sat on top of a new chassis and suspension, and while the proved ladder-frame chassis with leaf spring rear suspension design was retained, there were significant changes.

The new front suspension was Pajero-like, with coil springs, concentric dampers and double wishbones, replacing the previous torsion bar arrangement and the back saw the rear axle underslung – under the springs – for additional chassis-to-ground clearance.

The spring pack for Double Cabs was two leaves lighter than the pack for Single Cabs and both spring packs had anti-rattle, interleaf wear plates.

The new front end included rack and pinion steering and claimed class-leading turning circle – in absolute contrast to the wide turning circle of the pre-2006 models.

The powertrain was a mixture of old and new. The 3.5-litre ex-Pajero petrol V6 remained and the Triton picked up the Pajero’s 3.2-litre turbo-intercooled diesel four, but with a new common-rail injection system. The petrol engine’s maximum output was 135kW at 4750rpm, with peak torque of 309Nm at 3500rpm.

mitsubishi triton The diesel’s figures were a surprise, because they were lower than the figures for the Pajero engine. The common-rail Triton version had figures of 118kW at 4000rpm and 347Nm at 2000rpm, compared with the older, Pajero engine’s figures of 121kW at 3800rpm and 373Nm at 2000rpm.

It was maybe a smart marketing move to keep the ute outputs below those of the wagon, but the real reason was probably that the existing five-speed manual transmission and carry-over, four-speed auto couldn’t handle the diesel’s potential torque.

The 4WD system was Mitsubishi’s Easy-Select part-time arrangement, where, once selected at rest, 4WD could thereafter be engaged at any speed up to 100km/h.

The rear limited slip differential was a Thornton-type LSD that could be fitted with a full locking option. This made the Triton the only stock 4WD in the marketplace with a rear diff that functioned as a powerful limited-slip that could be locked positively as well.

(A Thornton limited slip differential enhances the gear-separation effect that occurs when one side-gear starts to spin,)

In this four-pinion, two-clutch LSD the pressure rings that transmit gear-separation forces to the clutch packs have V-shaped cutouts that bear against the pins of the central ‘cross’. As one side gear spins faster than its opposite number the clutches on that side resist the action and the gear-separation forces are magnified by the ramp action of the pressure rings against the cross pins, as friction tries to rotate the pressure rings.)

Wheels were 16×6 steel on Single Cab and base Double Cab models, shod with 205R16s, and the up-market Double Cabs ran on 16×7 aluminium wheels fitted with 245/70R16s. All the new models had at least a one-tonne payload rating and could tow a 2.3-tonne braked trailer, with up to 230kg ball loading.

The new Triton cab passed impact tests with a four-star rating. The deformable structure incorporated door anti-intrusion bars, a two-stage collapsible steering column and a pedal structure that was said to reduce the likelihood of lower limb injury.

There were lap/sash belts in all five seating positions and front seat airbags and belt pre-tensioners were standard. (The passenger-side airbag could be key-switched off, if necessary.)

All GLX-R and GLS Tritons came with standard four-channel ABS brakes, with electronic brake force distribution. The braking hardware remained a combination of discs and drums. ABS was optional on GLX models.

Mitsubishi claimed the largest cab volume and legroom in the ute class in 2006, with particular attention having been paid to the space and seat comfort of rear seat passengers. Even base models came with air conditioning and remote central locking. The range started with GLX models that were Single or Double Cab, petrol or diesel versions, with manual transmissions. GLX-Rs were petrol or diesel Double Cabs and petrols could have the automatic transmission option.

The GLS was a manual, diesel-only Double Cab model, with leather upholstery. GLX-R and GLS models had a power-operated rear glass in the cab rear wall and the GLS model could be specified with a sunroof.

 All new Tritons came with a five-year/100,000km bumper-to-bumper warranty and a non-transferable, 10-year/160,000km powertrain warranty.

mitsubishi triton The 2010-year Triton range saw the V6 petrol engine dropped and the introduction of a new variable geometry turbocharged 2.5-litre diesel, to replace the 3.2-litre diesel. The smaller-capacity engine generated a claimed 131kW at 4000rpm and 400Nm of torque at 2000rpm – up 11 percent and 17 percent respectively over the previous 4M41 3.2-litre engine. Combined fuel economy figures of 8.3 litres per hundred kilometres were claimed.

The not-so-good news was that the old four-speed automatic transmission carried over from the previous model and couldn’t handle that much torque, so auto-trans Triton models were capped at 350Nm of torque. Even the GLX-R model with its electronically controlled five-speed automatic had an engine torque cap. Combined fuel economy was a claimed 9.3 litres per 100km.

 Mitsubishi’s All Terrain Technology (MATT) was standard on all GLX-R models and featured Super Select 4WD, Active Stability & Traction Control, Multi Mode ABS, Electronic Brake Force Distribution and an optional diff lock.

 All post-2010 Tritons had standard driver and front passenger SRS airbags, front and rear door impact bars, ABS brakes with electronic brake force distribution, front seatbelt pretensioners and child restraint points.

Criticism of the tiny cargo box on Dual Cabs saw a 2010 introduction of a long-bed ute body with a length of 1505 mm and height of 460 mm.

Towing capacities were also increased, with a maximum of 2700 kg on Dual Cab 4WDs and 3000 kg on all other 4WD models.

For 2011 Mitsubishi re-introduced the Club Cab as a manual-transmission ute or cab/chassis with bucket seats, flip-up occasional-use rear seats, lever type park brake and floor console with lid and cup holder. Towing capacity was 2700kg.

In late 2012 Mitsubishi added side and curtain airbags to the Triton Double Cab range and made some interior styling and fabric changes. In recognition of the 2.5-litre engine’s power and torque deficiencies, compared with competitor powertrains, Mitsubishi cut the RRPs of the 2013-year Triton range by one to two grand.

The 2014-model changes were made in March 2014 and included an upgraded audio system across all models. Bluetooth functionality, mobile phone and iPod hands-free operation with voice recognition and steering wheel-mounted audio controls were added to all GL and GLX models.

All double cab Triton models were equipped with two Isofix child seat anchorage points.


On and off-road in 2012 models


mitsubishi triton Mitsubishi’s off-road competition heritage has always shown up in good ute handling qualities and the Triton continued this trend. The Double Cabs had wagon-like handling, with a tinge of power oversteer available underfoot. There was more bump-steer noticeable in the Single Cab and Club Cab models, but they were easy enough to aim where you wanted to go.

Ergonomics were excellent, with no need for the driver to reach for any controls. It wass odd that the 4WD lever was closer to the driver than the main gear lever, but you soon got used to the layout.

The information panel for the trip computer fitted to GLX-R and GLS models was excellent, with simultaneous displays of relevant factors, rather than the usual situation where the driver has to scroll through successive items.

Forward, side and rear vision was very good, but we’re not sure about the need for an opening rear glass. You certainly wouldn’t want it open when running on dusty roads. The power-adjustable front seats in the GLS were very supportive and comfortable, but we can’t say the same for the GLX and GLX-R seats that were too low-slung for the long legged and lacked under-thigh support.

The standard LSD controlled wayward rear axle behaviour under power, limiting spin on the inside rear wheel. It worked almost as well as a self-locking diff. The optional air-actuated diff lock clicked in instantly with the vehicle at rest and didn’t disengage automatically as the speed built up, so it worked very well in soft beach sand, where we needed to keep up momentum. The lock engaged in high or low range. It’s supposed to engage with the vehicle moving below 12km/h, but our test vehicles needed to be stationary for the lock to engage. It disengaged quickly when the dashboard switch was touched, or when 4WD was cancelled by moving the transfer case lever.

The Triton’s rear axle functionality was one of the best in the 4WD ute market. Petrol and diesel engines provided good performance and the common-rail version of the 3.2-litre diesel was quieter than the existing Pajero diesel.

Double Cab Tritons rode particularly well, but the Single Cabs were noticeably more ‘choppy’.

The post-2010 2.5-litre wasn’t enough to keep Mitsubishi at the forefront of ute performance, given the competition from the VW Amarok, Holden Colorado, Isuzu Ute D-Max, and the mechanically identical Ford Ranger and Mazda BT-50. Our bush testing of automatic-transmission Tritons indicates that Mitsubishi needed a new auto post-haste, to allow the engine to achieve its 400Nm potential.

That change and a new engine arrived in mid-2015.

Banner – Isuzu Truck












Advocate For Dogs and Cats - Discounted Online Prices.
